SS FILTER CARTRIDGE

Product Details

Micron: 5, 10, 15, 25, 40, 50, 80, 100 um

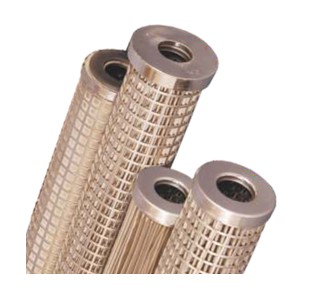

The AC & ACP series filter cartridges is made out of versatile SS wire mesh in various micron ratings. The SS construction makes the filter resistant to all chemicals & temperatures. The surface filtration technology boosts the flow rate to almost double of all the standard filter cartridge with ZERO replacement cost.

Configuration:

Std : Dia 2.5″ x 10″, 20″, 30″ and 40″ Jumbo – 4″ x 10″, 20″, 30″ and 40″.

Flow per 10”

Std: 30 LPM and Jumbo 50 LPM for raw water with operating pressure of 2.5 bar.

Technical Specification:

MOC	Core	Diameter inch/mm	Length	Micron
SS 304/316	ss			5
				10
		2.5” (63)	10”	15
		4”(100)	20”	25
		4.5”(115)	30”	40
			40”	50
				80
				100
