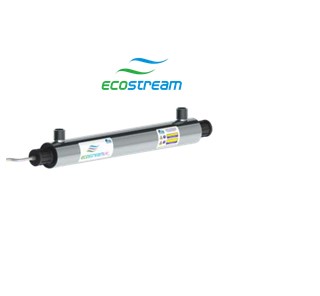

UV SYSTEM
FEATURES & BENEFITS
HIGH GRADE SS304L CHAMBERS
Using stainless steel direct from Salem Steel, each ECS Lite chamber is electropolished assuring better surface inish and corrosion free performance.
ADVANCED POWER SUPPLY
Perfectly matched and suited for the UV lamp, the new ECS Lite power supply provides upto 50% greater UV outpout as compared to local ballast/power supply which are typically designed for tubelights.
VALIDATED BY CFD TECHNOLOGY
Assured performance in a compact design. Uses same technology used to design rockets and formula one cars!
SUPERIOR QUALITY GENUINE QUARTZ
Each ECS Lite uses only genuine high purity fused silica Quartz directly imported by Alfaa UV. Better Quartz = beItter ef iciency.
| Model | AUV Standard | US Pablic Healthcare | Inlet Outlet Size |
| ECS04L | 200 LPH | 200 LPH | ¼” BSP (M) |
| ECS07L | 400 LPH | 400 LPH | ½”” BSP (M) |
| ECS10L | 650 LPH | 750 LPH | ½”” BSP (M) |
| ECS15L | 750 LPH | 1290 LPH | 3/4” BSP (M) |
| ECS25L | 1380 LPH | 2600 LPH | 3/4” BSP (M) |
| ECS40L | 2100 LPH | 4000 LPH | 1” BSP (M) |
| ECS70L | 4500 LPH | 7000 LPH | 11/2” BSP (M) |
Technical Specification:
Reactor Chamber MOC
SS 304 (Picked,Passivaed and Electropolished)
Lam sleeve MOC
High Purity fused Quartz (90.99% Pure Silica, UVT>95%)
O-rings and seals MOC
Food grade EPDM (as per US FDA 21 CFR 177.2600)
Oterating Voltage
230V/50-60Hz (+10%)
UP Lamp Failure Circuit
Included
Lamp Power Supply Type
Constant Currenty, High Frequency (Designed for UV Lamps)
Maximum Operating Pressure
75 PSI
Recommended Water Temperature
18o – 40o Celsius
Above Sizing is based an a 98% UVT which is typlcal for RO/DM Outlet Water in case your water quality is different please conatact us for appropriate Sizing. Technical Specification is constantly being improvd and subject to change at any time, please contact usin ccaseof any doubt.
